Ball Valves

PipesTec Ball Valves are a high performance solution to your industrial Ball Valve needs.  PipesTec Ball Valves are available in sizes ranging from ¼” to 80” in materials such as Carbon Steel, Stainless Steel, Brass, Forged Steel, Cast Steel and Cast Iron. PipesTec Ball Valves are also available in 2 Way or 3 Way configurations and are available in L Port and T Port flow patterns.  Available end connections of the ball valve include Threaded, Socket Weld, Butt Weld and Flanged.  Your Special Ball Valve and other Industrial Valves requirements are also available to inquire.

Mainly Ball Valve Dimensions & Features:
ANSI Ball Valve: Class 150LB-2500LB SIZE 1/2"~48"
DIN Ball Valve: DN50-DN600, PN16~PN160
JIS Ball Valve: DN50-DN600 10K~63K
BS Ball Valve: DN50 -DN350, PN16~PN40

Ball Valve Materials:
 WCB,LCB,WC6,WC9,C12,C5,CF8,CF3,CF3M,CF8M,A105,LF2,F11,F22,F5,F304,F316,F304L,F316L
Design & Manufacture Standards:
    API 6D,API600, ASME B16.34, JISB2071, JISB2073,JISB2083, BS 1873,BS1414
Face to Face Standards:
    ASME B16.10,DIN 3202,BS2080, API 6D, JISB2002
End Connection Standards:
    ASME B16.11,ASME B1.20.1,ASME B16.5, DIN2543-2550 ,JISB2212-JISB2214
Ball Valve Test Standards:
    API 598, API 6D, JIS B2003, ISO 5208, BS 6755, DIN 3230, EN 12266

Ball Valves Product List

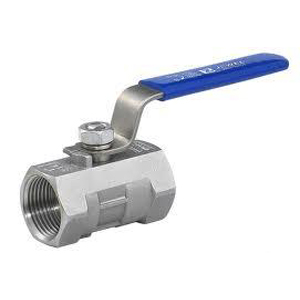

1PC Screwed Ball Valve, ASTM A351 CF8, SS304 Trim, Ball
1PC Screwed Ball Valve, ASTM A351 CF8, SS304 Trim, Ball
ST 14 BV 07
China Screwed Ball Valve manufacturer PipesTec provides 1PC Screwed Ball Valve, ASTM A351 CF8 Body, SS 304 Trim Ball, 1000 WOG 1/4 inch, NPT end, PTFE Seal.
API 6D 3-PC Forged Ball Valve, ASTM A105, 600#, 16 Inch
API 6D 3-PC Forged Ball Valve, ASTM A105, 600#, 16 Inch
ST 14 BV 08
China Forged Ball Valve manufacturer PipesTec supplies API 6D 3-PC Body Forged Steel Ball Valve, ASTM A105 body, Class 600, Flanged RF Ends, Model 16 Inch.

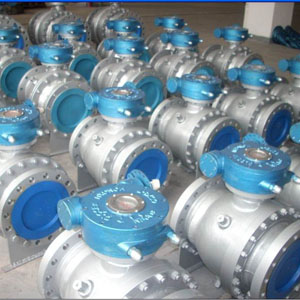

Trunnion Mounted Ball Valve, 2-PC Full Bore, 8 Inch 300#
Trunnion Mounted Ball Valve, 2-PC Full Bore, 8 Inch 300#
ST 14 BV 09
China Ball Valve manufacturer PipesTec provides 2-PC Full Bore Trunnion Mounted Ball Valve, ASTM A216 WCB, API 6D, Class 300, Flanged RF Ends, SS304 Ball.

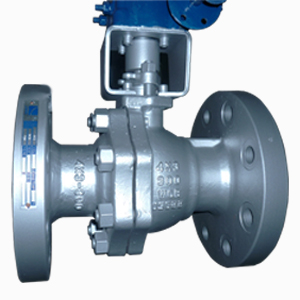

Floating Ball Valve, 2-PC Reduced Bore, API 6D, 300, RF
Floating Ball Valve, 2-PC Reduced Bore, API 6D, 300, RF
ST 14 BV 10
China API 6D Ball Valve manufacturer PipesTec offers Floating Ball Valves, 2-PC Reduced Bore, ASTM A216 WCB, SS304 Ball, PTFE Seat, 300#, Flanged RF, 4X3.

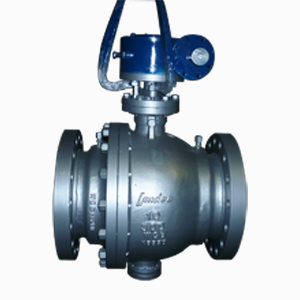

Trunnion Ball Valve, ASTM A216 WCB, 300#, 10 Inch, RF
Trunnion Ball Valve, ASTM A216 WCB, 300#, 10 Inch, RF
ST 14 BV 11
China Trunnion Ball Valve manufacturer PipesTec offers API 6D 2-PC Trunnion Ball Valves, ASTM A216 WCB, Flanged RF, Gear Operator, Class 300, Model 10 Inch.
Electrical Actuated Ball Valve, A216 WCB, 6 Inch, 300#
Electrical Actuated Ball Valve, A216 WCB, 6 Inch, 300#
DU 14 BV 12
China Electrical Actuated Ball Valve manufacturer PipesTec offers API 6D 2-PC Electrical Actuator Ball Valves, ASTM A216 WCB, PTFE, SS304, Class 300, 6 Inch.
Full Welded Forged Ball Valve, ASTM A105, 600#, 20 Inch
Full Welded Forged Ball Valve, ASTM A105, 600#, 20 Inch
ST 14 BV 13
China Full Welded Ball Valve manufacturer PipesTec supplies ASTM A105 Full Welded Forged Ball Valves, API 6D, A105+ENP Ball, NYLON Seat, Class 600, 20 Inch.
Stainless Steel Forged Ball Valve, Full Bore, 150 LB
Stainless Steel Forged Ball Valve, Full Bore, 150 LB
ST 14 BV 14
China Forged Ball Valve manufacturer PipesTec supplies API 6D/API 608 Stainless Steel Ball Valves, ASTM A182 F304, Full Bore, F304 Ball, PTFE Seat, 150 LB.
ASTM A105N Reduced Ball Valve, 6 x 4 Inch, CL2500, RTJ
ASTM A105N Reduced Ball Valve, 6 x 4 Inch, CL2500, RTJ
ST 14 RBV 01
China ASTM A105N Reduced Ball Valve Manufacturer PipesTec Supplies API 6D ASTM A105N Reduced Bore Ball Valves, Size 6 x 4 Inch, Class 2500, Flanged RTJ Ends.
Extension Stem Full Welded Forged Ball Valve, RF, CL300
Extension Stem Full Welded Forged Ball Valve, RF, CL300
ST 14 ESBV 01
China Full Welded Forged Ball Valve Manufacturer PipesTec Offers Extension Stem Full Welded Forged Ball Valves, Flanged RF, 300#, ASTM A105, API 6D, 12 Inch.
Display 41 to 50 of 85 Ball ValvesResult Pages:  < 1 2 3 4 5 6 7 8 9 >
